• 23%+ high conversion mono cells, fast charging in weak light
• 248° bendable, fits boats, vans & curved surfaces
• Wide temperature tolerance, scratch-resistant PET shell
• 2mm thin, under 2kg, rollable & easy to carry
• Recyclable build, eco-friendly clean energy

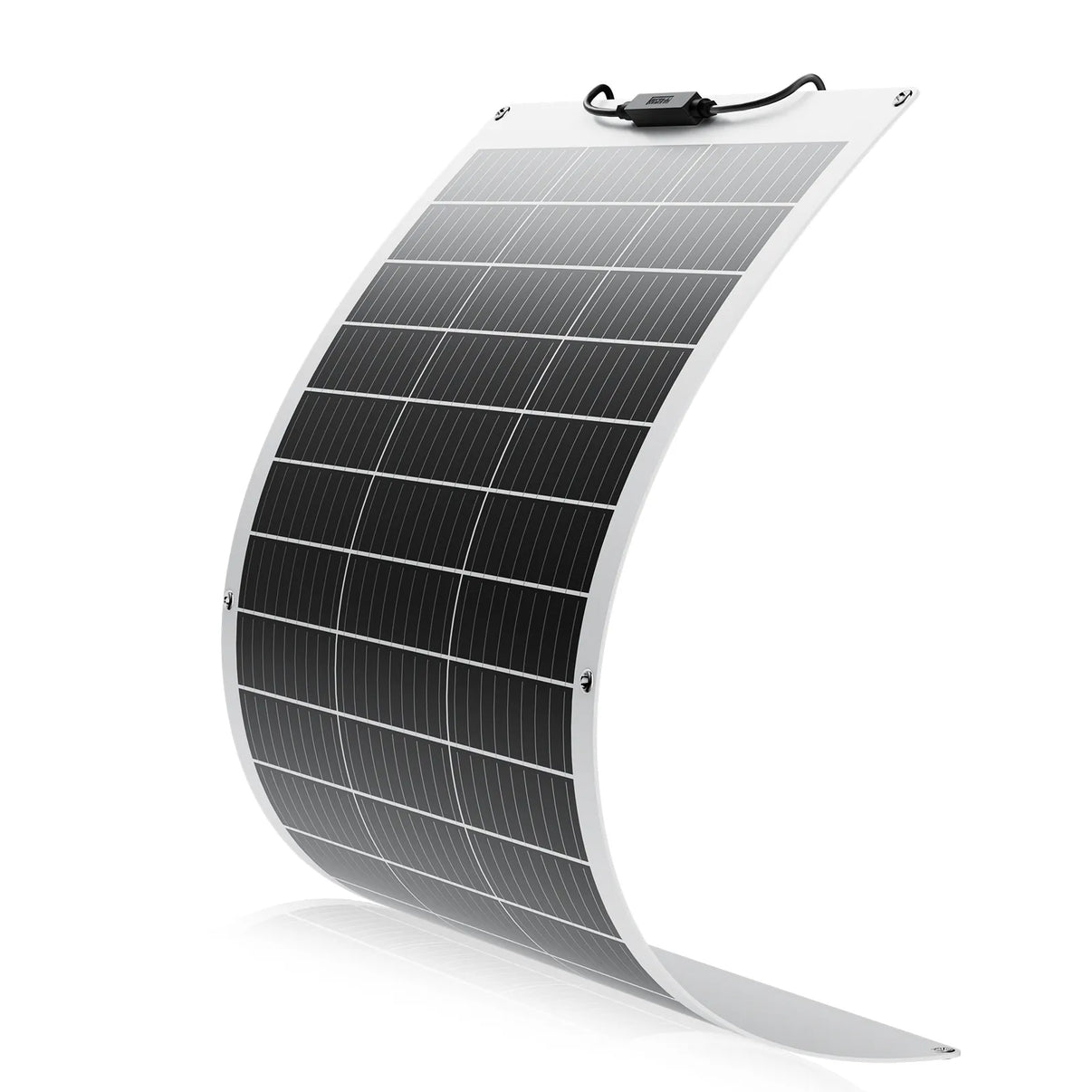

EcoBoss 100W Flexible Solar Panel
Module Performance
System Configuration:
Off-Grid
Solar Technology:
Monocrystalline
Power Source:
Solar
Max Power (Pmax):
100W
Voltage at Pmax (Vmp):
18.5V
Current at Pmax (Imp):
5.41A
System Voltage:
12V
Current Type:
DC
Maximum Input Voltage:
11–20V
Charging Mode:
PWM / MPPT
Mechanical Specifications
Dimensions:
36.02 × 24.02 in (915 × 610 mm)
Material:
Monocrystalline Silicon
Frame:
No Frame (Flexible Design)
Connector Type:
MC4 Compatible
Output Cables:
4 mm² (90 cm)
Flexibility:
Flexible
Connector Configuration:
FFM, MMF
Operating Parameters
Operating Temperature:
-20°C
Temperature Range:
-20°C to +60°C
Recommended Environment:
Outdoor
Resistance Properties:
Abrasion, Acid, Chemical, Corrosion, Dust, Weather Resistant
Certifications & Protection
Certification:
RoHS, CE, TUV Certification, EL Test
IP Rating:
IP68
Compatibility & Applications
Compatible Devices:
Solar Panel, Solar Regulator, Solar Battery Charger
Apply To:
Controller MC-4
Applications:
Agriculture, Automotive, RV, Camping, Electronics, Marine, Home/Garden, Aquaculture, Backup Power, Commercial, Irrigation, Municipal, Pool, Shed
Frequently Asked Questions
Can I walk on the flexible solar panel?
No. It cannot bear heavy pressure. Walking on it will damage the solar cells.
How do I install a 100W flexible solar panel?
Install via silicone adhesive, Velcro or grommets. No bulky aluminum brackets needed. Use a clean and dry surface.
Is the flexible panel waterproof?
Yes. It reaches IP67 waterproof rating for outdoor & marine use. Do not submerge it in water for a long time.
What charge controller should I use?
An MPPT controller is recommended for higher efficiency. Choose 10A or higher for one 100W panel.
What is the expected lifespan?
Normally 5–10 years. Avoid sharp bending and impacts to extend service life.
Does shading affect performance?
Yes. Shading greatly lowers power output. Install it in full sunlight.
Can I charge a 12V battery directly?
No. A charge controller is required to stabilize voltage and prevent overcharging.
