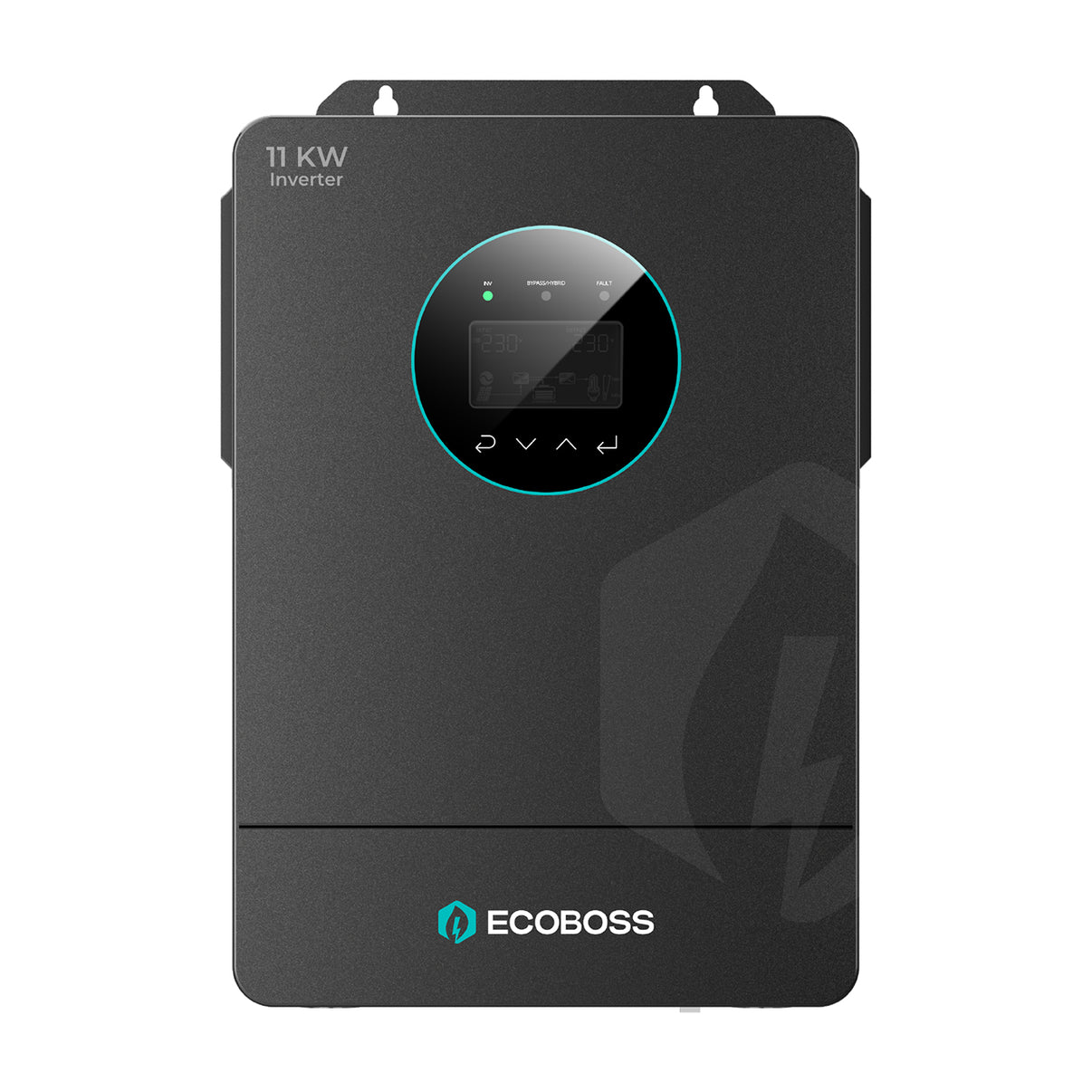

● 11000W Pure Sine Wave, Peak 22000W, 48V battery system
● Grid-tied & Off-Grid hybrid inverter, support parallel connection
● Dual MPPT trackers, Max PV input 15000W (90–500Vdc)
● Adjustable UPS transfer time for uninterrupted power supply
● LCD real-time monitor, lithium BMS & WIFI expansion, full safety protection
BATTERY
Rated Voltage:
48 Vdc
Constant Charging (Configurable):
56.4 Vdc
Charging Voltage (Configurable):
54 Vdc
DISPLAY & INTERFACES
LCD:
Shows operating mode, load status, input/output parameters
RS232:
5PIN/Pitch2.54 mm, Baud Rate 2400
Expansion Slot Communication interface:
Lithium Battery BMS Communication Card, WIFI 2×5PIN/Pitch2.54 mm
Parallel Support:
Support Parallel
PHYSICAL PARAMETERS
SIZE(L*W*H):
570*471*148 mm
Standards & Certifications:
EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
AC INPUT VOLTAGE
Input Formation:
L+N+PE
AC Input:
220/230/240 VAC
Input Voltage Range:
90-280 VAC ±3V (Normal Mode) /170-280 VAC ±3V (UPS Mode)
Frequency:
50/60 Hz (Adaptive)
GRID-CONNECTED OPERATION
Output Voltage:
220/230/240 VAC
Grid Voltage Range:
195-253 VA
Grid Frequency Range:
49-51±1Hz/59-61±1Hz
Rated Output Current:
47.8 A
Power Factor Range:
>0.99
Peak Efficiency (DC/AC):
98%
CHARGER
PV Charging Mode:
MPPT*2
Max PV Input Power:
2×7500 W
MPPT Input Voltage Range:
90~500 Vdc
Optimal Vmp Range:
360~430 Vdc
Max PV Input Voltage:
500 Vdc
Max PV Input Current:
27 A/27 A
Max PV Charging Current:
150 A
Max AC Charging Current:
150 A
Max Charging Current:
150 A
OUTPUT SPECIFICATIONS
Rated Power:
11000 W
Output Voltage:
220/230/240 VAC ±5%
Output Frequency:
50/60 Hz ±0.1%
Output Wave:
Pure Sine Wave
Peak Power:
22000 W
Transfer Time:
10ms for Computer Equipment (Adjustable), 20ms for Household Equipment
Overload Ability:
Battery Mode: 21s @105%-150% Load
11s @150%~200% Load
400ms @>200% Load
11s @150%~200% Load
400ms @>200% Load
AMBIENT TEMPERATURE
Operating Temperature:
-10℃~50℃
Storage Temperature:
-15℃~60℃
Operating Environment Humidity:
20%~95% Non Condensing
Noise:
≤ 50dB
Work Altitude:
No more than 1000m, if over 1000m, rated power will lower, MAX 4000m, Refer to IEC62040
