• 24% high conversion efficiency, reliable performance in diverse climates
• Dual-sided panels boost power output to cut energy bills
• Upgraded 12BB design delivers consistent power on cloudy days
• High-grade tested materials, excellent all-weather durability

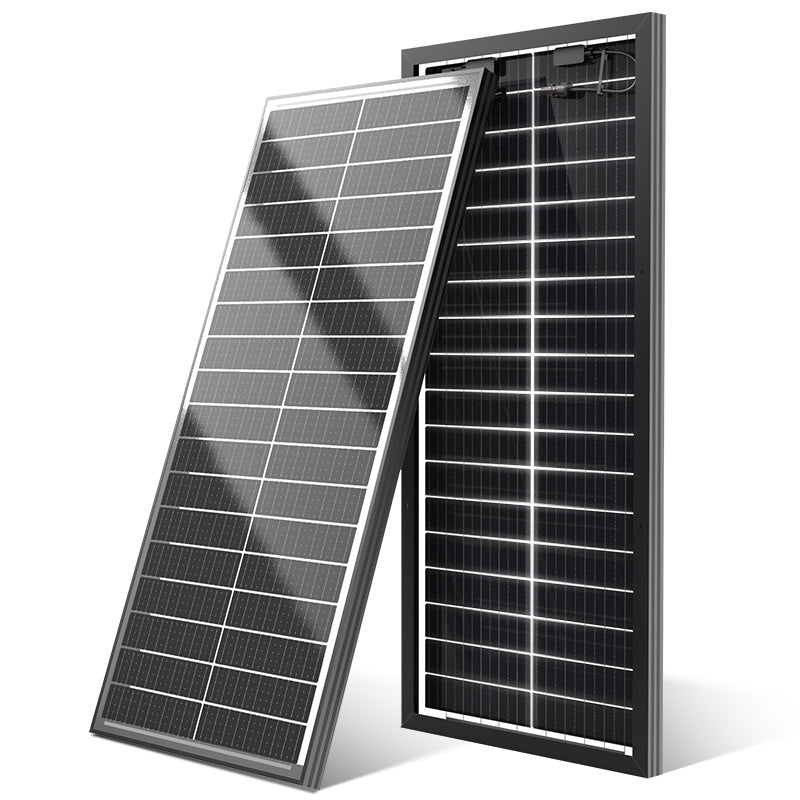

EcoBoss 200W Bifacial Solar Panel
Electrical Characteristics (STC: 1000W/㎡, 25℃, AM1.5)
Maximum Power (Pmax):
200W
Open Circuit Voltage (Voc):
22.1V
Short Circuit Current (Isc):
12.1A
Voltage at Pmax (Vmp):
18.2V
Current at Pmax (Imp):
10.9A
Module Efficiency:
25.2%
Power Tolerance:
(±3%)
Maximum System Voltage:
1000V
Maximum Series Fuse Rating:
20A
Temperature Characteristics
Pmax Temperature Coefficient:
-0.40%/℃
Voc Temperature Coefficient:
-0.32%/℃
Isc Temperature Coefficient:
+0.05%/℃
Operating Temperature:
-40~+85℃
Nominal Operating Cell Temperature (NOCT):
45±2℃
Mechanical Specifications
Dimensions:
1340 × 670 × 30 mm
Weight:
4.9 kg
Solar Cells:
Monocrystalline 210×52.5mm (36 pcs)
Front Glass:
3.2mm Tempered Glass, Low Iron
Frame:
Anodized Aluminum Alloy
Junction Box:
IP68 Rated
Mechanical Load:
5400 Pa
Output Cables:
4.0mm² × 900mm
Connector:
MC4 Compatible
Frequently Asked Questions
Will the panel continuously output 200W?
200W is rated under STC test conditions. Actual power varies with sunlight, temperature and shading.
What charge controller should I use?
It fits 12V systems. A 12V ≥20A MPPT controller is recommended.
Is it waterproof for outdoor installation?
The junction box is IP68 rated. It works outdoors in rain, do not submerge it.
Can I extend the output cables?
You may extend cables with equal or larger PV wire. Seal all joints well to avoid power loss.
Is this panel suitable for RV and camping?
Lightweight (4.9kg) and compact size, perfect for RV, camping and small off-grid systems.
