• 23%+ high conversion mono cells, fast charging in low light
• 248° bendable, fits curved & flat surfaces; easy installation on RVs, boats and awnings
• Wide temperature tolerance, scratch-resistant PET shell
• 2mm thin, ultra-light, rollable & portable outdoors
• Recyclable construction, eco-friendly clean energy
• Ideal for households, RV trips and marine applications for steady power

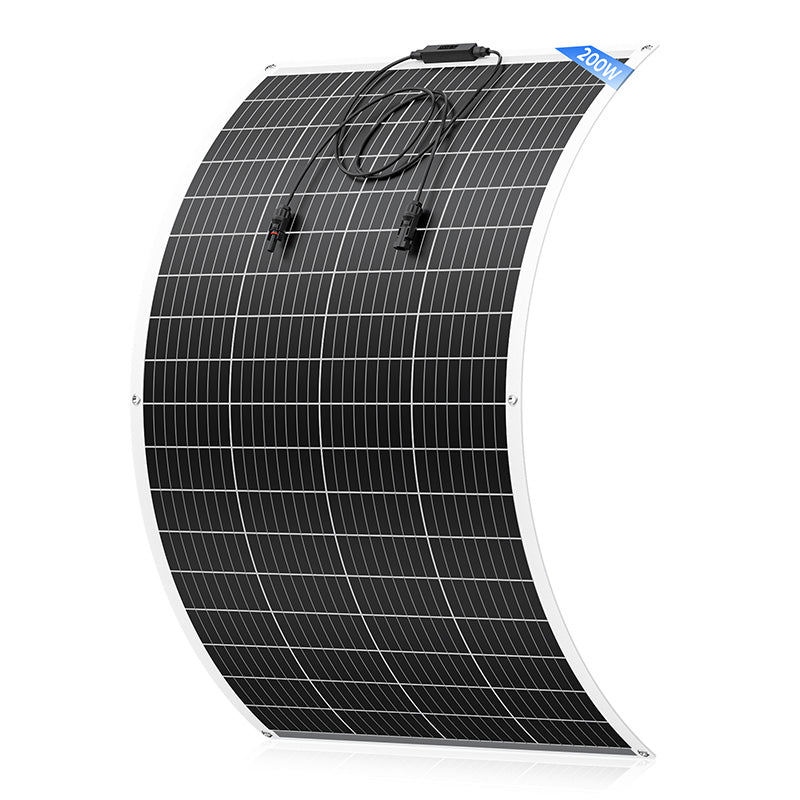

EcoBoss 200W Flexible Solar Panel
Module Performance
System Configuration:
Off-Grid
Solar Technology:
Monocrystalline
Power Source:
Solar
Max Power (Pmax):
200W
Voltage at Pmax (Vmp):
18V
Current at Pmax (Imp):
11.11A
System Voltage:
12V
Current Type:
DC
Maximum Input Voltage:
11–20V
Charging Mode:
PWM / MPPT
Mechanical Specifications
Dimensions:
58.27 × 26.77 in (1480 × 700 mm)
Material:
Monocrystalline Silicon
Frame:
No Frame (Flexible Design)
Connector Type:
MC4 Compatible
Output Cables:
4 mm² (90 cm)
Color:
Black
Flexibility:
Flexible
Connector Configuration:
FFM, MMF
Operating Parameters
Operating Temperature:
-20°C
Temperature Range:
-20°C to +60°C
Recommended Environment:
Outdoor
Resistance Properties:
Abrasion, Acid, Chemical, Corrosion, Dust, Weather Resistant
Certifications & Protection
Certification:
RoHS, CE, TUV Certification, EL Test
IP Rating:
IP68
Compatibility & Applications
Compatible Devices:
Solar Panel, Solar Regulator, Solar Battery Charger
Apply To:
Controller MC-4
Applications:
Agriculture, Automotive, RV, Camping, Electronics, Marine, Home/Garden, Aquaculture, Backup Power, Commercial, Irrigation, Municipal, Pool, Shed
Frequently Asked Questions
What is a flexible solar panel and how is it different from a rigid one?
Flexible solar panels are thin, lightweight and bendable up to 30°, suitable for curved surfaces such as RV roofs and boats, different from rigid panels.
Can I walk on the flexible solar panel?
No. It cannot withstand heavy pressure. Walking on it will damage internal cells.
How do I install the 200W flexible solar panel?
Mount it with silicone adhesive, Velcro or grommets. No heavy aluminum brackets. Use a clean, dry surface.
What charge controller should I use?
An MPPT controller is recommended for higher efficiency. Select 10A or higher.
What is the service life?
Generally 5–10 years. Avoid sharp bending and impacts to extend lifespan.
Does shading affect power generation?
Yes. Shading greatly reduces output. Install in full sunlight.
Can I directly charge a 12V battery?
No. A charge controller is necessary to regulate voltage and prevent overcharging.
