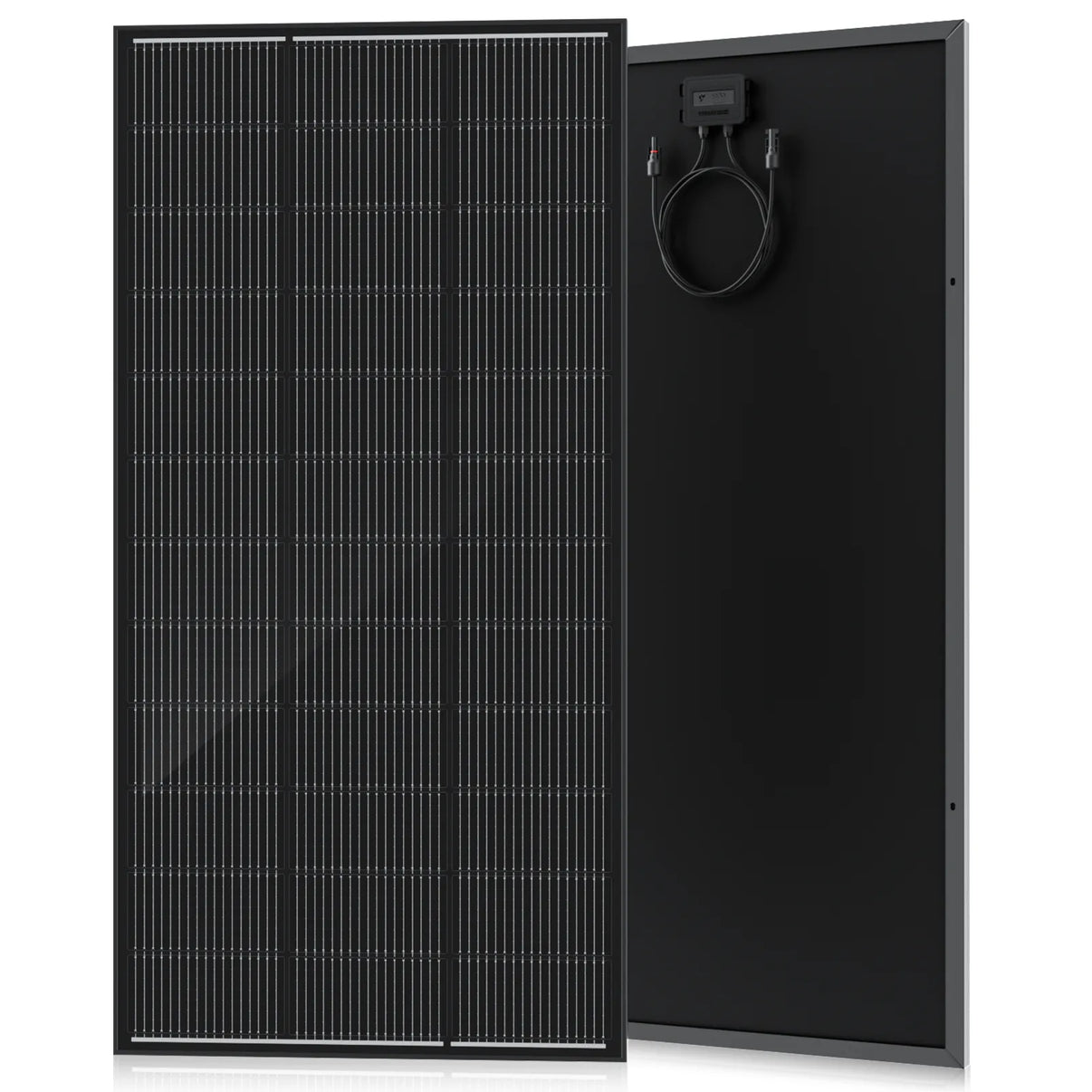

● 18BB Cell Half-Cut Technology, grade A solar cells, 25.5% conversion.
● Anti-corrosion aluminum frame, strong and durable, longer life.
● Reserved mounting holes, easy installation.
● Durable in any weather.
200W SOLAR PANEL SPECIFICATIONS
Electrical Characteristics (STC: 1000W/㎡, 25℃, AM1.5)
Module Type:
MK30-200
Maximum Power (Pmax):
200W
Open Circuit Voltage (Voc):
23.06V
Short Circuit Current (Isc):
10.32A
Voltage at Pmax (Vmp):
20.84V
Current at Pmax (Imp):
9.6A
Power Tolerance:
(0, +4.99W)
Maximum System Voltage:
1000V
Maximum Series Fuse Rating:
25A
Temperature Characteristics
Pmax Temperature Coefficient:
-0.40%/℃
Voc Temperature Coefficient:
-0.32%/℃
Isc Temperature Coefficient:
+0.05%/℃
Operating Temperature:
-40~+85℃
Nominal Operating Cell Temperature (NOCT):
45±2℃
Mechanical Specifications
Dimensions:
1340 × 770 × 30 mm
Weight:
7.6 kg
Solar Cells:
Monocrystalline 45.5 × 182 mm (72 pcs)
Front Glass:
3.2 mm Tempered Glass, Low Iron
Frame:
Anodized Aluminum Alloy
Junction Box:
IP67 Rated
Mechanical Load:
3200 Pa
Output Cables:
4.0 mm², 900 mm Length
Connector:
MC4 Compatible
Frequently Asked Questions
How much power can a 200W solar panel generate per day?
Under optimal sunlight (about 5 hours per day), a 200W panel can produce 1.0–1.2 kWh of electricity daily. Actual output may vary depending on sunlight intensity, temperature, and installation angle.
Can I connect multiple 200W panels together?
Yes. You can connect panels in series to increase voltage or in parallel to increase current. Always ensure your charge controller and inverter support the total voltage and current of the system.
What type of batteries can this panel charge?
The EcoBoss 200W Rigid Solar Panel is compatible with LiFePO₄, AGM, GEL, and Flooded Lead-Acid batteries when used with a proper solar charge controller (PWM or MPPT). For best performance, we recommend an MPPT controller.
What materials are used in the panel frame and surface?
The panel uses a corrosion-resistant aluminum frame and low-iron tempered glass, providing excellent durability and long-term resistance against environmental stress, rust, and UV damage.
How do I install the 200W solar panel?
Each panel includes pre-drilled mounting holes compatible with most solar mounting systems—Z brackets, tilt mounts, and pole mounts. It can also be used in ground or roof installations for homes, RVs, and off-grid cabins.
Can I use this panel with a 12V or 24V system?
Yes. A single 200W panel works perfectly with 12V systems, and two panels in series are ideal for 24V systems. Make sure your charge controller matches the system voltage.
Can I use this panel for my RV, boat, or cabin?
Absolutely. The 200W panel is ideal for off-grid power systems, including RVs, boats, cabins, sheds, and home backup setups—anywhere you need reliable renewable energy.
