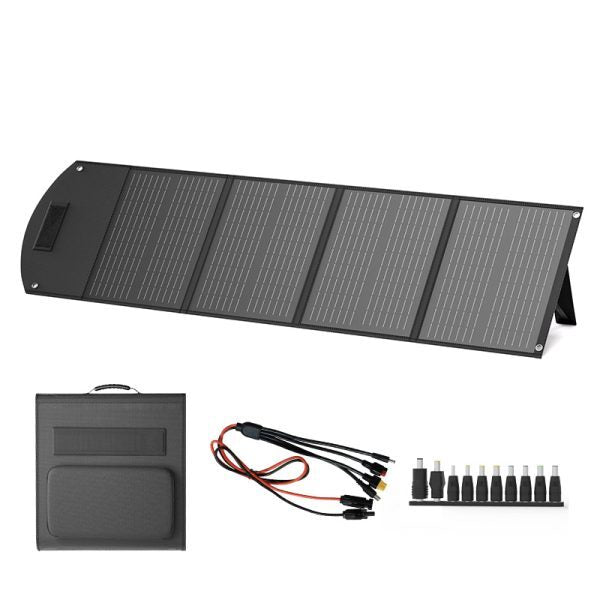

Power up your outdoor adventures with this ultra-compact 200W Portable Solar Panel, featuring a foldable design, adjustable kickstands, and high-efficiency monocrystalline cells to deliver fast, clean energy for your solar generator anytime, anywhere.
● Lightweight at 7.38 lbs and foldable, perfect for life on the go.
● Adjustable angle bracket and pre-drilled holes for hassle-free mounting.
● Equipped with MC4 connectors, compatible with most solar systems.
● Waterproof, dustproof, and rugged enough to last for decades in any environment.
● Ideal for camping, RVs, boating, emergencies, and outdoor adventures.
Product Specifications
Module Performance
Maximum Power (Pmax):
200W
Cell Type:
Monocrystalline Silicon
Module Efficiency:
23.0%
Open Circuit Voltage (Voc):
23.4V
Short Circuit Current (Isc):
12.69A
Voltage at Pmax (Vmp):
21.6V
Current at Pmax (Imp):
11.57A
Maximum System Voltage:
DC 600V
Series Fuse Rating:
15A
Mechanical Specifications
Dimensions - Folded:
530 × 550 × 70 mm
Dimensions - Unfolded:
2200 × 530 × 10 mm
Weight:
Approx. 13.2 lbs
Connector:
MC4 Compatible
Frame:
Durable fabric + Reinforced backing
Stand Type:
Integrated adjustable kickstands
Protection Rating:
IP65
Operating Parameters
Temperature Coefficient of Voc:
-0.25% /°C
Temperature Coefficient of Isc:
+0.04% /°C
Temperature Coefficient of Pmax:
-0.35% /°C
Operating Temperature:
-20°C ~ +65°C
Storage Temperature:
-25°C ~ +70°C
Recommended System Voltage:
12V / 24V
Application:
Portable power, RV, Camping, Emergency backup
Frequently Asked Questions
What is the difference between foldable solar panels and regular solar panels?
Foldable panels are lightweight, storable and portable, designed for mobile outdoor charging. Rigid regular panels are heavy for fixed installation and not suitable to carry around.
Can panels from different brands be used together?
Yes. They are compatible as long as the voltage matches and the connectors fit, no brand restriction.
How to maintain them for longer service life?
Fold gently and avoid scratches; wipe with a damp cloth, do not submerge in water; store in dry place when not in use, prevent long-term exposure or moisture.
Will they leak electricity and cause safety risks?
Certified products come with overvoltage, overcurrent and short-circuit protection. Low voltage is safe. Do not disassemble privately or continue using damaged & water-infiltrated units.
Why charging is slow even under strong sunlight?
Common causes: panel not facing the sun directly, slow charging triggered when device is nearly full, cable power loss, efficiency drop due to high temperature, shadows or obstructions.
