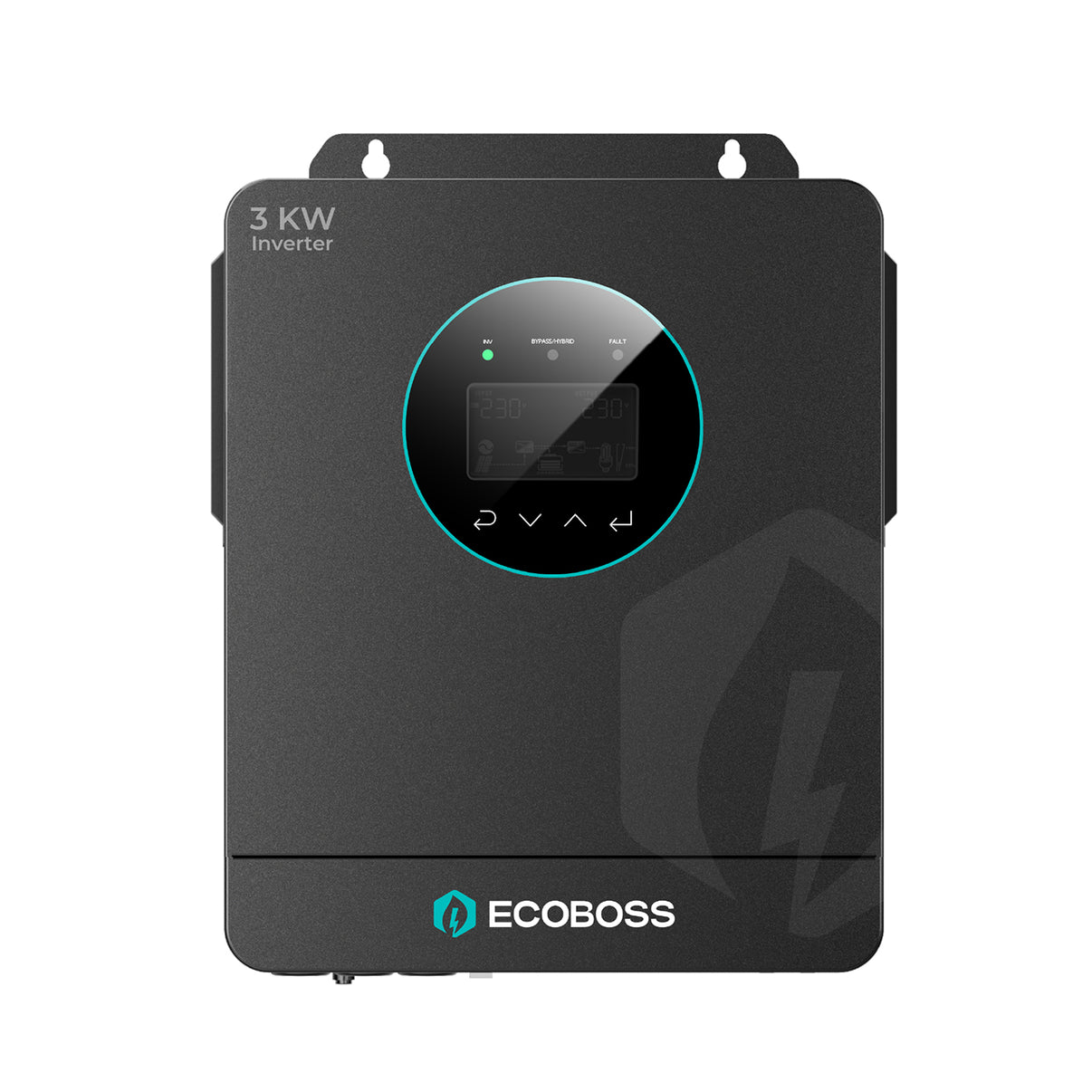

● 3000W pure sine wave, peak 6000VA, US 110V single-phase output
● All-in-one hybrid design with built-in MPPT solar charge controller
● UPS mode, ≤10ms fast transfer for continuous power
● 24V battery system, 30~500V wide PV input, support lithium BMS
● Multiple safety protections + LCD real-time data display
DISPLAY & INTERFACE
LCD:
Can display operating mode/load/input/output
RS232:
Baud Rate 2400
Expansion Slot Communication interface:
Lithium Battery BMS Communication Card, WIFI/Pitch2.54 mm
Parallel Function:
Not Support Parallel
BATTERY
Rated Voltage:
24 Vdc
Constant Charging (Configurable):
28.2 Vdc
Charging Voltage (Configurable):
27 Vdc
AC INPUT VOLTAGE
AC Input:
220 VAC (standard) /110 VAC (custom)
Input Voltage Range:
90-280 VAC ±3V (Normal Mode) 170-280 VAC ±3V (UPS Mode)
Input Frequency:
50/60 Hz ±5%
Rated Power:
3000 W
CHARGER
PV Charging Mode:
MPPT
Max PV Input Power:
3000 W
MPPT Input Voltage Range:
30~500 Vdc
Optimal Vmp Range:
300~400 Vdc
Max PV Input Voltage:
500 Vdc
Max PV Input Current:
13 A
Max PV Charging Current:
100 A
Max AC Charging Current:
60 A
Max Charging Current:
100 A
OUTPUT SPECIFICATIONS
Solar Inverter Output Power:
3000 W
Output Voltage:
220/230/240 VAC ±5%
Output Frequency:
50/60 Hz ±0.1%
Output Wave:
Pure Sine Wave
Transfer Tim:
≤10 ms (UPS mode) / ≤20 ms (INV mode)
Peak Power:
6000VA
Overload Ability:
Battery Mode: 11s @105%-150% Load
2s @150%~200% Load
400ms @>200% Load
2s @150%~200% Load
400ms @>200% Load
AMBIENT TEMPERATURE
Operating Temperature:
-10℃~50℃
Operating Environment Humidity:
-10℃~60℃
Storage Temperature:
20%~90% Non Condensing
Noise:
≤ 50dB
