● 15,000+ Cycle Life: Premium LiFePO4 cells achieve 15,000+ cycles, 10× longer lifespan than lead-acid batteries for steady power and lower replacement costs.
● 100A Smart BMS: Advanced 100A BMS prevents overcharge, over-discharge, overcurrent, short circuit and temperature risks; supports 100A continuous discharge & 50A max charge for heavy loads.
● Low-Temp Protection: Halts charging below 32°F and resumes at 41°F; charging range 32°F–113°F, discharge range -4°F–149°F, reliable for cold outdoor environments.
● Expandable & IP65: Supports 2S4P expansion up to 8 batteries (51.2V 400Ah, 20.48kWh); IP65 rated, perfect for RV, marine, trolling motors, solar, backup and off-grid power.
● 24-Hour Support: 24-hour customer service for installation, troubleshooting and product inquiries.
EcoBoss 24V 100Ah LiFePO4 battery with 2560Wh deep cycle energy storage
| Nominal Capacity: | 2560Wh |
| BMS Board: | 120A |
| Charge Voltage: | 14.6V |
| Certifications: | UL-1973/FCC/CE/RoHS/UN38.3 |
| Weight: | 42.17LB |
| Product Size(LWH): | 15.12" L x 7.64" W x 10.04" H |
Lightweight 24V lithium battery for RV, marine and off-grid adventures
100A BMS, Grade-A cells, IP65 waterproof and supports 4P2S expansion
Expandable battery bank for home backup power storage
Widely used for home solar, trolling motor, camping and RV power supply

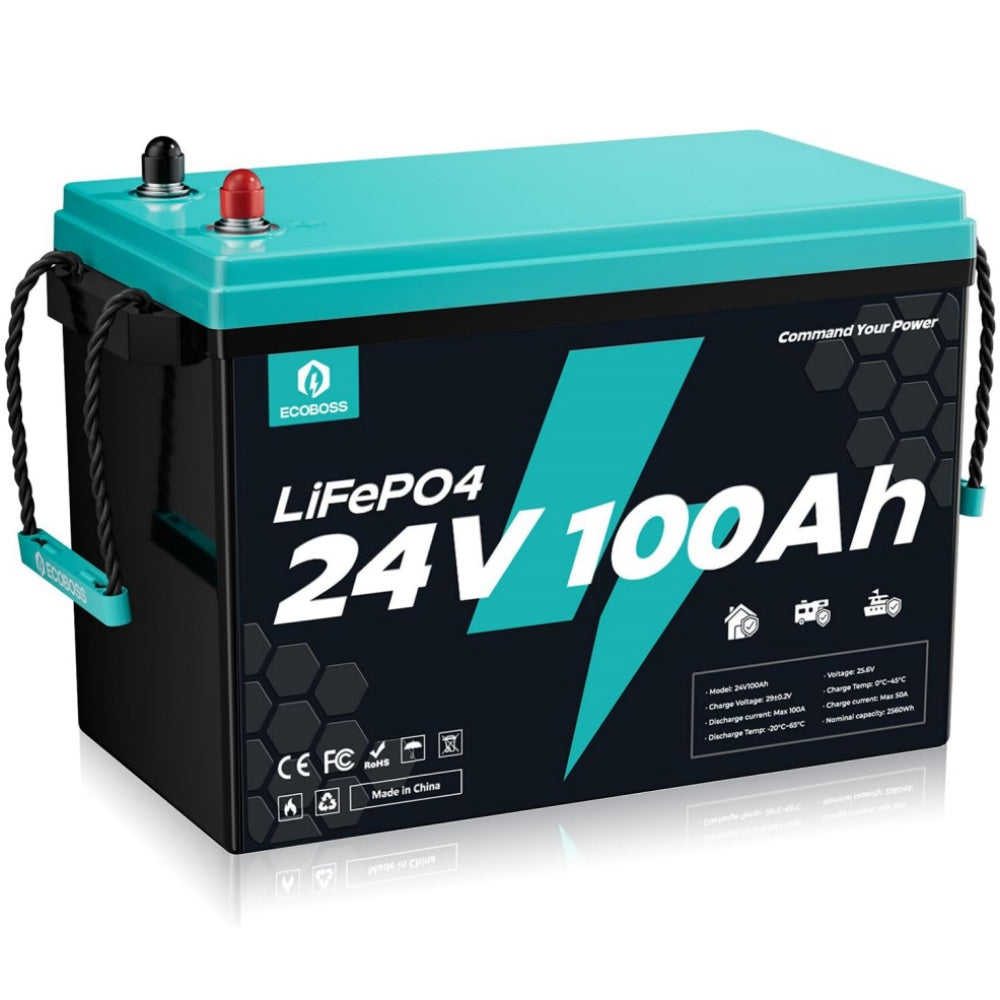

24V 100Ah LiFePO4 Lithium Battery
Specifications
Product Model:
24V100Ah
Product dimensions:
15.12" L x 7.64" W x 10.04" H
Product weight:
42.17LB
Nominal voltage:
25.6V
Nominal capacity:
2560 Wh
Operating voltage range:
21.6~29.2 V
Maximum charging voltage:
29.0 V ±0.20 V
Discharge termination voltage:
20V ±0.20V
Maximum charging current:
50 A
Maximum discharge current:
100 A
Peak current:
200 A
Working environment:
Temperature: -10°C~60°C, humidity: <95% non-condensing, atmospheric pressure: 86kPa~106kPa
Housing material:
ABS
Frequently Asked Questions
What makes this LiFePO4 battery different from a traditional lead-acid battery?
LiFePO4 (Lithium Iron Phosphate) batteries offer 3× longer lifespan, 60% lighter weight, and faster charging compared to lead-acid. They maintain over 4000–15000 charge cycles and provide consistent voltage output throughout discharge—ideal for solar storage, RVs, and off-grid systems.
Can this battery replace a lead-acid battery directly?
Yes. This LiFePO4 battery is a drop-in replacement for matching voltage deep-cycle lead-acid or AGM batteries. Simply ensure your charger or controller supports LiFePO4 charging mode.
Does it include a built-in BMS (Battery Management System)?
Absolutely. Each unit includes a smart BMS that protects against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes. It automatically balances cells to ensure optimal lifespan and stable operation.
Is it safe to use indoors or in a confined space?
Yes. LiFePO4 batteries are non-toxic, non-leaking, and have no gas emissions, making them safe for indoor use in RVs, boats, and cabins. However, proper ventilation helps maintain optimal temperature.
Can I use this battery with an inverter or solar controller?
Yes. It’s compatible with pure sine wave inverters, MPPT/PWM controllers, and matching voltage solar systems. Just confirm the inverter’s battery low-voltage cutoff and set your charge controller battery profile to LiFePO4.
What happens if the battery gets too cold or too hot?
The built-in BMS protects against temperature extremes. Charging is automatically disabled below 0°C (32°F) and above 55°C (131°F) to prevent damage. The battery will resume normal operation once back within safe limits.
Can I monitor the battery status?
If you choose the Bluetooth version, you can check real-time voltage, capacity, temperature, and cycle count via a smartphone app. It helps you optimize energy usage and detect issues early.
How do I store the battery when not in use?
Store it at 40–60% charge, in a dry, cool place (10–30°C). Disconnect from all loads and chargers. If stored long-term, recharge every 3–6 months to maintain health.
