● Ultra-Long 15,000+ Cycle Lifespan: Premium LiFePO4 cells deliver 15,000+ cycles, 10× longer than lead-acid batteries, cutting replacement and maintenance costs for long-term power supply.
● 100A Smart BMS Full Protection: Built-in 100A BMS prevents overcharge, over-discharge, overcurrent, short circuit and temperature anomalies; supports 100A continuous discharge & 80A max charge for heavy loads.
● Intelligent Low-Temp Protection: Stops charging below 32°F and resumes at 41°F; charging: 32°F–113°F, discharge: -4°F–149°F, stable in cold harsh outdoor conditions.
● 4P Expandable & IP65 Waterproof: Supports 4 parallel batteries up to 51.2V 400Ah (20.48kWh); IP65 dustproof & waterproof for complex outdoor installations.
● Wide Application & 24H Support: Ideal for RV, marine, trolling motors, solar storage, off-grid and home backup power; 24-hour support for installation and troubleshooting.

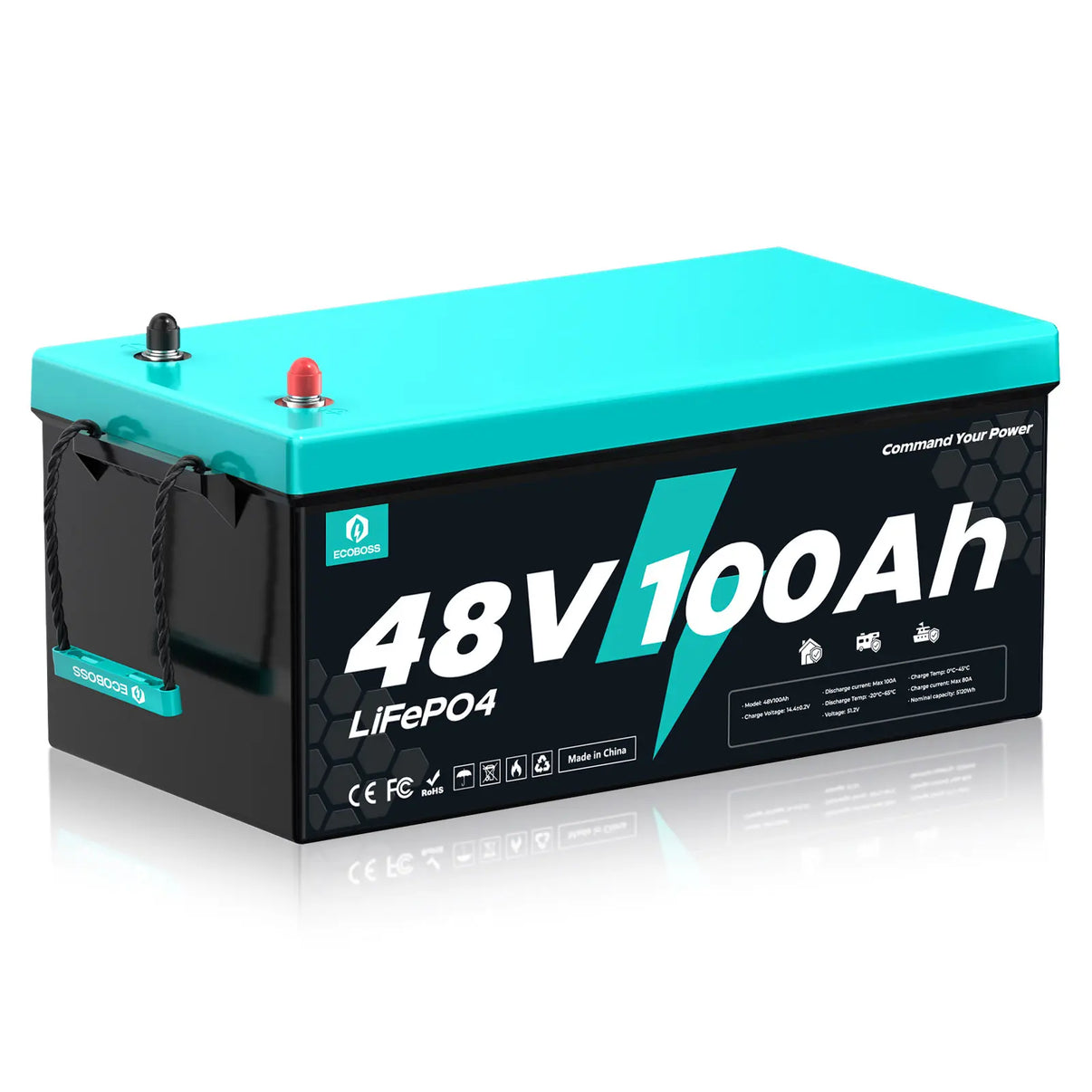

EcoBoss 48V 100Ah LiFePO4 battery with 5120Wh large capacity energy storage
| Nominal Capacity: | 4800Wh |
|
Nominal voltage:
|
48 V
|
| Charge Voltage: |
54.75 V ±0.20 V
|
|
Maximum discharge current:
|
100 A
|
| Weight: | 78.111bs |
| Product Size(LWH): | L20.47*W 8.62×H 10.51 in |
EV-grade cells, 100A BMS, IP65 waterproof and 4P4S expandable up to 16 units
High cycle life lithium cells with comprehensive multi-protection BMS
51.2kWh usable energy, ideal for home off-grid solar storage system
Suitable for home backup, marine, RV van and off-grid solar power
Product Specifications
48V 100Ah LiFePO4 Lithium Battery
Product Model:
48V100Ah
Product dimensions:
20.47" L x 8.62" W x 10.51 " H
Product weight:
78.1 LB
Nominal voltage:
48 V
Nominal capacity:
4800 Wh
Operating voltage range:
43.2~54.75 V
Maximum charging voltage:
54.75 V ±0.20 V
Discharge termination voltage:
37.5 V ±0.20V
Maximum charging current:
50 A
Maximum discharge current:
100 A
Peak current:
200 A
Working environment:
Temperature: -10℃~60℃, humidity: <95% non-condensing, atmospheric pressure: 86kPa~106kPa
Housing material:
ABS
Frequently Asked Questions
Max continuous load: 4800W. We recommend ≤4000W for safe use. Peak 200A only for short moment.
Use dedicated lithium battery charger. Cut-off voltage set to 54.75V. DO NOT use lead-acid charger.
BMS protection activated (over-current, low voltage, overheat). Disconnect load and rest 10–30 mins for recovery.
Only identical, same-age batteries can be paralleled. Mixing different batteries is forbidden.
Keep 50%–70% charge. Recharge every 3 months. Store in dry, ventilated place.
ABS case is dustproof, NOT waterproof. Avoid continuous rain or immersion. Use extra waterproof cabinet for outdoor installation.
No short circuit, no disassembly, no heavy impact. Keep ventilation while charging. Avoid fast charging under 0℃.
