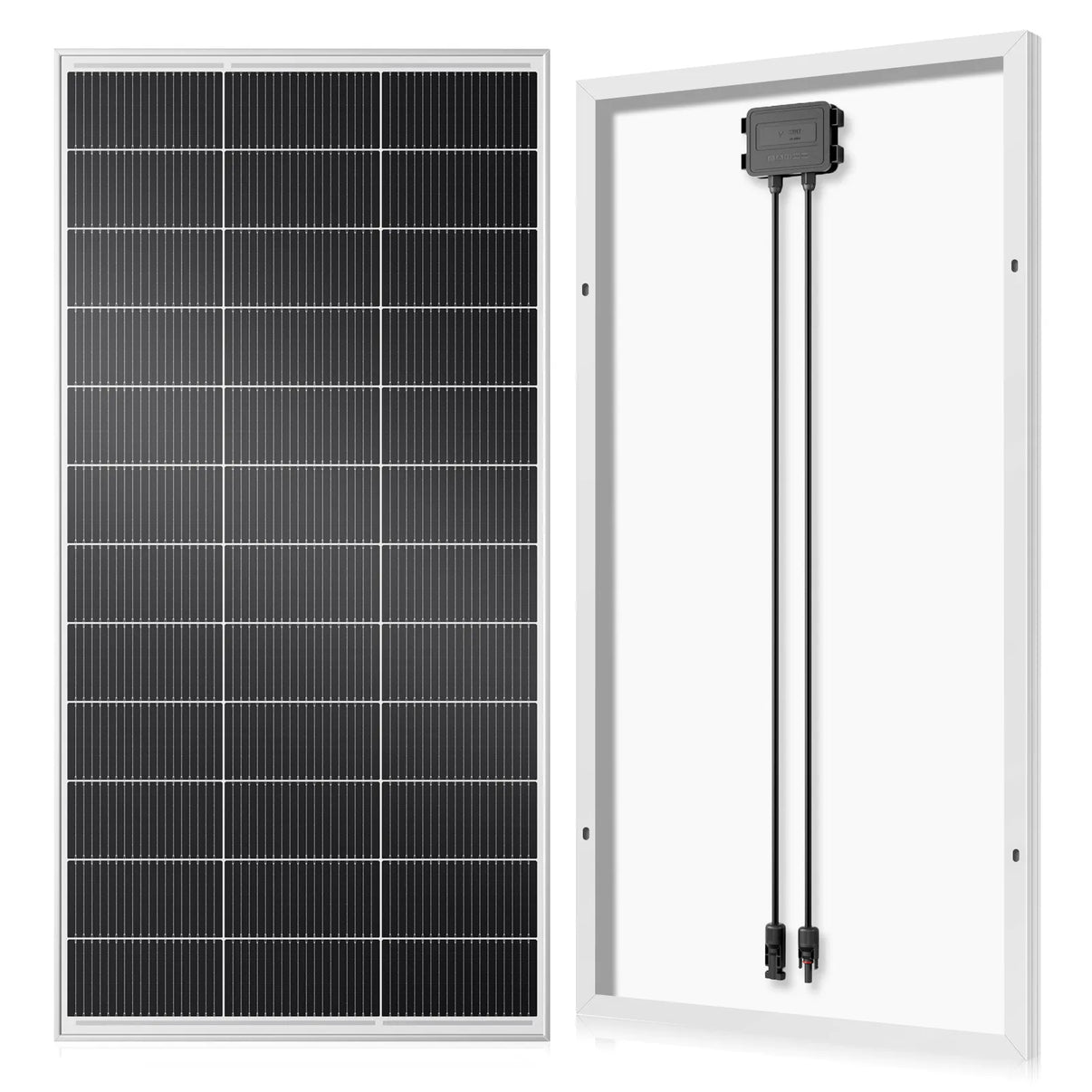

    200W Monocrystalline Solar Panel

    $147.00

    ● Engineered for high efficiency with up to 22.8% conversion rate, maximizing energy output even in limited sunlight.
    ● Prevent overheating and power loss, ensuring consistent performance even when partially shaded.
    ● Built with a durable, anti-rust frame to withstand harsh outdoor environments and extend service life.
    ● Equipped with pre-drilled mounting holes, making setup fast, secure, and compatible with most solar mounting systems.
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa
    Estimated Delivery: Dec 06 - Dec 10
    Pairs well with
    Share to:
    View Full Details
    1 / 1
    DescriptionSpecificationFAQReviews

    18BB design, Grade A solar cell, 24.3% conversion rate

    Generate 1200-1500wh of electricity per day

    Built for Excellence Materials

    Each solar panel isbuilt with premium components and precision manufacturing to ensure excellent solar conversion efficiency and a longer lifespan.

    25-year Performance Warranty

    200W Solar Panel Specifications

    Electrical Characteristics (STC: 1000W/㎡, 25℃, AM1.5)
    Module Type:
    SQ200
    Maximum Power (Pmax):
    200W
    Open Circuit Voltage (Voc):
    22.1V
    Short Circuit Current (Isc):
    12.1A
    Voltage at Pmax (Vmp):
    18.2V
    Current at Pmax (Imp):
    10.9A
    Power Tolerance:
    (0, +4.99W)
    Maximum System Voltage:
    1000V
    Maximum Series Fuse Rating:
    20A
    Temperature Characteristics
    Pmax Temperature Coefficient:
    -0.40%/°C
    Voc Temperature Coefficient:
    -0.32%/°C
    Isc Temperature Coefficient:
    +0.05%/°C
    Operating Temperature:
    -40～+85℃
    Nominal Operating Cell Temperature (NOCT):
    45±2℃
    Mechanical Specifications
    Dimensions:
    1340 × 670 × 30 mm
    Weight:
    8.7 kg
    Solar Cells:
    Monocrystalline 210 × 105 mm (36 pcs)
    Front Glass:
    3.2 mm Tempered Glass, Low Iron
    Frame:
    Anodized Aluminum Alloy
    Junction Box:
    IP67 Rated
    Mechanical Load:
    5400 Pa
    Output Cables:
    4.0 mm², 900 mm Length
    Connector:
    MC4 Compatible

    Frequently Asked Questions

    How much power can a 200W solar panel generate per day?

    Under optimal sunlight (about 5 hours per day), a 200W panel can produce 1.0–1.2 kWh of electricity daily. Actual output may vary depending on sunlight intensity, temperature, and installation angle.
    Can I connect multiple 200W panels together?

    Yes. You can connect panels in series to increase voltage or in parallel to increase current. Always ensure your charge controller and inverter support the total voltage and current of the system.
    What type of batteries can this panel charge?

    The EcoBoss 200W Rigid Solar Panel is compatible with LiFePO₄, AGM, GEL, and Flooded Lead-Acid batteries when used with a proper solar charge controller (PWM or MPPT). For best performance, we recommend an MPPT controller.
    Is the 200W panel waterproof?

    Yes. Our panels are IP67 weather-resistant, meaning they can withstand rain, snow, and harsh outdoor conditions. However, avoid permanent submersion in water.
    What materials are used in the panel frame and surface?

    The panel uses a corrosion-resistant aluminum frame and low-iron tempered glass, providing excellent durability and long-term resistance against environmental stress, rust, and UV damage.
    How do I install the 200W solar panel?

    Each panel includes pre-drilled mounting holes compatible with most solar mounting systems—Z brackets, tilt mounts, and pole mounts. It can also be used in ground or roof installations for homes, RVs, and off-grid cabins.
    Can I use this panel with a 12V or 24V system?

    Yes. A single 200W panel works perfectly with 12V systems, and two panels in series are ideal for 24V systems. Make sure your charge controller matches the system voltage.
    Can I use this panel for my RV, boat, or cabin?

    Absolutely. The 200W panel is ideal for off-grid power systems, including RVs, boats, cabins, sheds, and home backup setups—anywhere you need reliable renewable energy.
